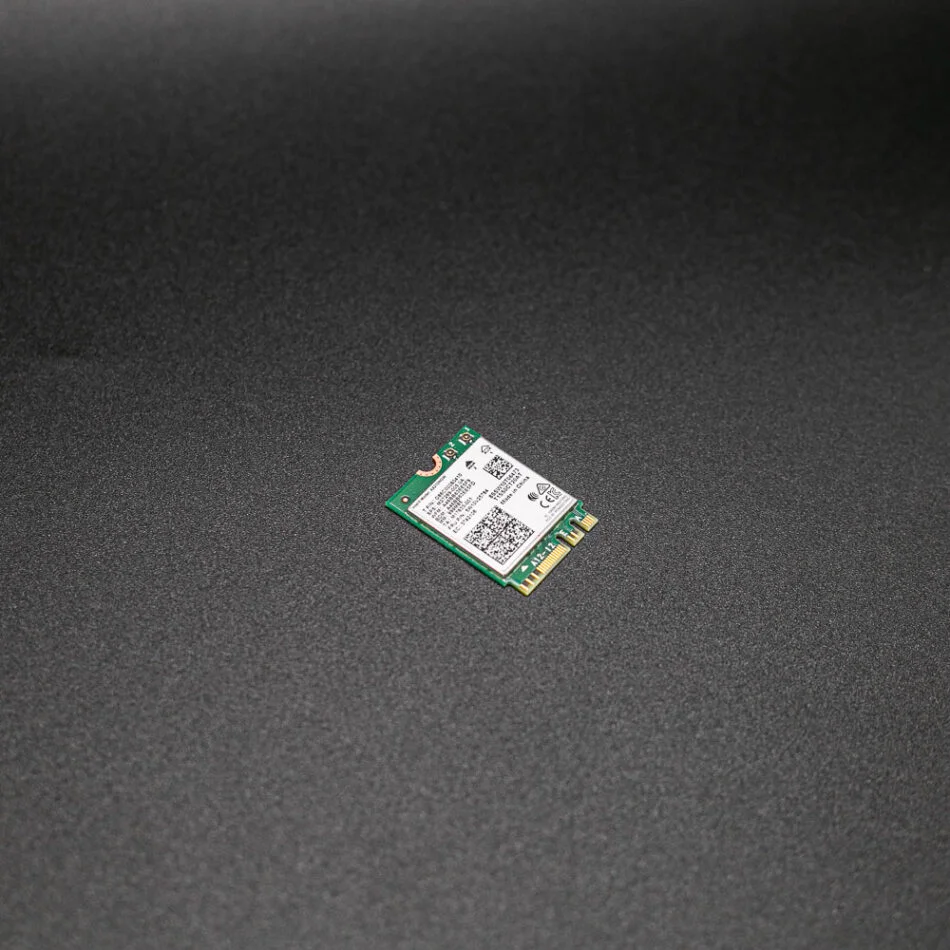

Intel AX210NGW Wifi 6E (Gig+) Module Dual Band 160MHz Up to 6Ghz, Bluetooth 5.2

Get a 6Ghz (Gig+) wireless connection for your projects with Intel’s latest wifi 6E module!

• Supports the latest Bluetooth 5.2 with new features like LE Audio, Power Control, Isochronous Channels and EATT.
• Operates in all 3 bands (6Ghz/5Ghz/2.4Ghz).
• 3x higher peak data rates than wifi 5.
• Supports both Intel vPro & Active Management Technology.

Specifications

• Dimensions (H x W x D): 22mm x 30mm x 2.4mm
• Weight: M.2 2230: 2.83 +/– 0.3 g
• Radio ON/OFF Control: Supported
• Connector Interface: M.2: PCIe, USB
• Operating Temperature: 0°C to +80°C
• Operating Systems: Microsoft Windows* 10, Linux*,
• IEEE WLAN Standard: 802.11a, b, d, e, g, h, i, k, n, r, u, v, w, ac, ax.
• Bluetooth®: 5.2
• Security Methods: WPA2 Personal and Enterprise; WPA3
• Encryption: 128-bit AES-CCMP, 256-bit AES-GCMP

Drivers & Data Sheets

• Linux support for Intel AX210
• Windows driver support
• Intel Wi-Fi 6E AX210 Product Brief

What’s in the package:

• 1 x Intel AX210NGW Module
